1
vote
$\begingroup$

First, thanks to all of you, this message board is truly helpful, at least up until now;) I used the search option and checked all related questions about LASSO but I could not find an appropriate related topic. So, I hope someone might be able to give me a hint to the following problem.

I would like to point out that I am not a native speaker, so many apologies if there exist some grammatical mistakes or if my questions are not 100% understandable at a first glance. Moreover, this is my first post, so if there is a better way clarifying my issue, let me know:).

Also I am new to R and especially to the glmnet package. Therefore, pretty "deep" commands might be confusing to me:)

My data set consists of 17 columns and 3353 rows. The first column is my dependent variable defined as Abnormal Log-Return (of the Henry Hub natural gas price). The remaining columns are my predictor variables in the following order: (1) Production, (2) Consumption, (3) Storage, (4) RotaryRigCount, (5) Employment, (6) ProducerPriceIndex, (7) LNGImport, (8) PipelineExport, (9) U.S. GDP, (10) 3Month T-Bill, (11) S&P 500, (12) M1 MoneySupply, (13) IndustrialProduction, (14) TradeWeightedDollarIndex, (15) WTICrudeOil and (16) FuturesPrice. All predictor variables are transformed as Log-Returns.

I have two questions about the following plot:

enter image description here

First Question:

I want to label JUST the lines (coefficients of the predictor variables) in the graph which are at the end not forced to zero (I used lambda.min, computed with 10-fold cross-validation).

So being precisely, my results indicate, after having used the glmnet.predict, that (1) Production, (3) Storage, (4) Rotary, (6) ProducerPriceIndex, (7) LNGImport, (8) PipelineExport, (9) U.S. GDP, (10) 3Month T-Bill, (15) WTICrudeOil and (16) FuturesPrice, are not forced to zero.

What I think is: R or actually the glmnet package should somehow know which line in the graph belongs to the corresponding variable. Since I use the command:

plot(lasso.model, xvar="lambda", label=TRUE)

this seems to be right. The lines are labeled with figures and I also assume that these figures belong to the corresponding predictor variable. Meaning, the (blue) line labeled as 16 should therefore be FuturesPrice. Am I right?

Now, let us assume I am right that the blue line at the top of the graph is the predictor variable FuturesPrice. Then, I would like the word "FuturesPrice" standing left to the line in color black. Furthermore, if for instance the pink line (second highest) is LNGImport, I would like the word "LNG Import" standing left to the line and so on. But just for the variables which are not forced to zero!

In addition, I would like to have some lines or arrows from the word to the line in order to distinct better when lines are very closed together.

I edited the above graph to show you what I really mean:

Edited Plot

Second Question:

I want that all lines are colored in gray, except those which will not forced to zero. So referring to the above example, the lines of FuturesPrice and LNGImport should be in red, whereas all the others should be in gray.

I know that with the command plot, one is able to change the color using the option col="gray". But this changes all lines in gray. Might there any possibility in reaching this?

I hope my questions are comprehensible:)

Thank you a lot in advance.

$\endgroup$

locked by whuber Dec 28 '16 at 18:47

This question exists because it has historical significance, but it is not considered a good, on-topic question for this site, so please do not use it as evidence that you can ask similar questions here. This question and its answers are frozen and cannot be changed. More info: help center.

Read more about locked posts here.

1
vote
$\begingroup$

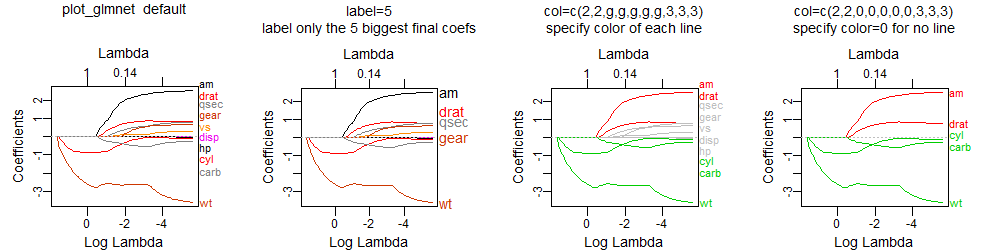

The plot_glmnet function in the plotmo package allows more flexibility in the way labels are handled and can handle the issues you mention. For example, the following code

library(glmnet)
mod <- glmnet(as.matrix(mtcars[-1]), mtcars[,1])
library(plotmo) # for plot_glmnet
plot_glmnet(mod)                             # default colors
plot_glmnet(mod, label=5)                    # label the 5 biggest final coefs
g <- "gray"
plot_glmnet(mod, col=c(2,2,g,g,g,g,g,3,3,3)) # specify color of each line
plot_glmnet(mod, col=c(2,2,0,0,0,0,0,3,3,3)) # specify color=0 for no line

gives

plot http://www.milbo.org/doc/plot-glmnet-labels.png

Futher examples may be found in Chapter 6 in plotres vignette which is included in the plotmo plotmo package.

$\endgroup$
0
votes
$\begingroup$


I am not an expert on R or glmnet either. Leveraging Stephen's response and package above.


Question #1:

I don't think there is a way in plotmo to label only the non-zero lambda's at lambda.min. Stephen demonstrated: If you use label=some.number it will label only the top some.number variables with largest final abs(coefficients); not necessarily the ones that were non-zero at your lambda.min. If you change the color to 0 the variables are hidden/removed altogether, not just unlabeled....but if they are unlabeled you can't be sure which variable it is so maybe it ok to just remove it. Alternatively, you can label everything and adjust the color so that the important ones stand out (see Stephen's plot #3 above and response to question #2 below). This way you can see which variables are important and which ones are not. I agree that it would be nice to label only the important variables when there are a large number of variables and lambda is specified by user. Maybe this is something that could be added to plotmo in future?

You may consider adding a reference line for lambda.min to your plot to see which variable coefficients are non-zero at the cross-validated min error location. In plotmo, you can add the vertical line using parameter s=somelambdavalue.


Question #2: You should be able to color the important variables based on the coefficient values at lambda.min. Following code is extension of what Stephen provided for mtcars.

library(glmnet)
mod <- glmnet(as.matrix(mtcars[-1]), mtcars[,1]) #from stephen's code above

cvfit<-cv.glmnet(as.matrix(mtcars[,-1]),mtcars[,1])

glmcoef<-coef(mod,cvfit$lambda.min)
coef.increase<-dimnames(glmcoef[glmcoef[,1]>0,0])[[1]]
coef.decrease<-dimnames(glmcoef[glmcoef[,1]<0,0])[[1]]

#get ordered list of variables as they appear at smallest lambda
allnames<-names(coef(mod)[,
    ncol(coef(mod))][order(coef(mod)[,
    ncol(coef(mod))],decreasing=TRUE)])

#remove intercept
allnames<-setdiff(allnames,allnames[grep("Intercept",allnames)])

#assign colors
cols<-rep("gray",length(allnames))
cols[allnames %in% coef.increase]<-"green"      # higher mpg is good
cols[allnames %in% coef.decrease]<-"red"        # lower mpg is not

library(plotmo)
plot_glmnet(mod,label=TRUE,s=cvfit$lambda.min,col=cols)

#if you don't believe hp or am are non-zero look at glmcoef
glmcoef

enter image description here

$\endgroup$
